Spatial Score

Open Tool

Open Spatial Score

Purpose

Spatial Score is a browser-based spatial motion designer for banked 8-source third-order ambisonic motion. It is meant for composing motion first, then writing that motion into REAPER as editable automation.

Groups And Scenes

Each group contains up to eight sources. Up to eight groups can be used, giving a practical target of 64 source points. Groups share the selected motion bank and scene structure but can be offset so their points do not simply overlap.

Motion scenes store the generated source state, hold time, morph time, and scene name. Auto Next advances through the scenes in order during preview. Generate A-H creates a full scene set and can vary hold/morph timing.

Motion Rules

Motion banks provide families of movement such as orbit, weave, lattice, frame, trace, pulse, suspend, leap, field, molec, fluid, forsy, flock, eco, contact, march, procession, xenak, cardew, path, scatter, and physics. The physics bank adds force-driven scene behaviors such as calm, swarm, bounce, orbit, tether, drift, vortex, and well. Variants change the local behavior within a bank.

Variant names change with the selected motion bank. They keep the same stored keys in the exported JSON, while the visible names and motion profiles change with the selected bank.

For the physics bank, Attract, Repel, Bounce, Collision, Damping, and Turbulence act inside the motion generator. Physics variants also shape these forces. Arc sluice adds a multi-arc boundary with moving gaps, using the same collision and bounce controls. Analysis influence is a separate global layer, so it is usually clearest to audition physics motion with analysis influence low or off, then add analysis only when a scene needs additional centroid or spread control.

Generate Motion creates a new seeded variant for the active scene. Captured motion can then be held, morphed into the next scene, and exported as part of a banked motion score.

Preview

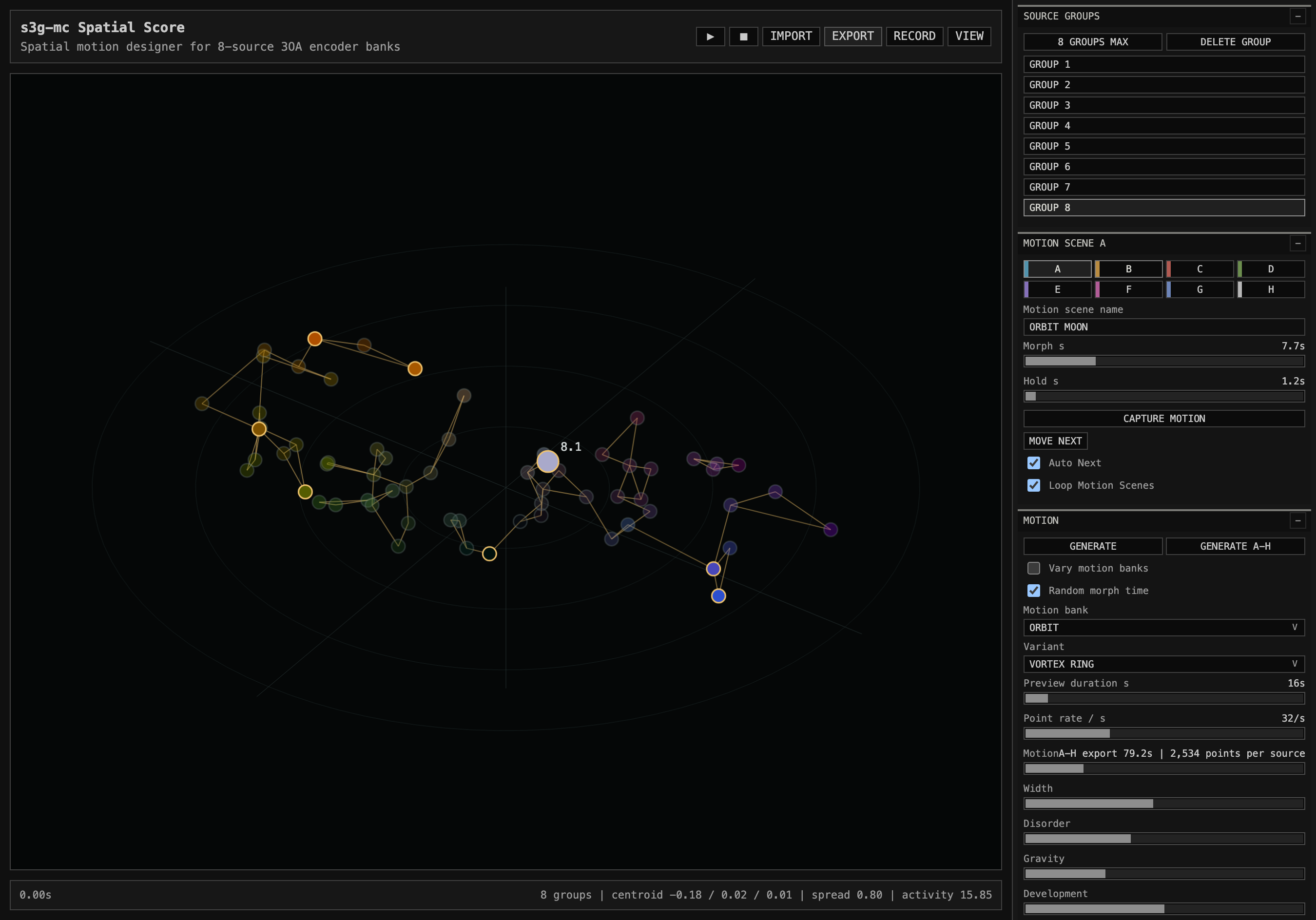

The main view previews point position, path preview, optional centroid display, neighbor-link analysis, and camera views. Top, side, and 3/4 views are useful for checking whether the spatial behavior is clear before exporting.

The analysis layer can operate across all groups or only the active group. Neighbor links draw local constellations between nearby points rather than connecting every point to every other point.

REAPER Export

Exported JSON can be loaded in REAPER with Load Spatial Score JSON. The loader first offers to target a focused/touched FX that exposes Azimuth, Elevation, and Distance parameters. If no AED parameters are found, it can derive X/Y/Z automation from the same score. If the score has more point paths than the target FX exposes, the first matching point paths are used. The alternate loader path creates encoder tracks and writes source motion as automation for s3g 8ch 3OA Object Encoder.

The focused-FX path works to varying degrees with several ambisonic encoders. s3g Ambi Point Encoder exposes azimuth, elevation, and distance. SPARTA AmbiENC and IEM MultiEncoder expose azimuth/elevation but not distance, so only those coordinates are written. ICST AmbiEncoder advertises X/Y/Z parameters; the loader converts the Spatial Score AED data for that case when AED parameters are not available.

The browser utility is the design surface; REAPER remains the place where the automation is placed, edited against media, and rendered.

Max Bridge

The optional Max bridge in Scripts/s3g-mc/utilities/spatial-score-max-bridge reads exported Spatial Score JSON directly with a V8 script. It plays back the exported automation arrays at control rate. In ICST mode it outputs AmbiMonitor point messages in the format aed index azimuth elevation distance.

This keeps Spatial Score JSON as the source format and avoids converting continuous motion into ICST snapshot XML. The bridge is a translation layer: adapt its generic source-message outlet if another Max-based monitoring patch needs group, source, or gain data.
